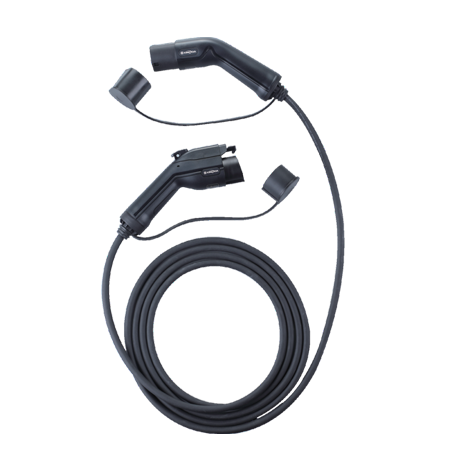

PRODUCT DETAILSType 1 to Type 2 EV Charging Cable
Mode 3 EV Charging Cable
This series of products includes GB/T to Type 2, Type 1 to Type 2, and Type 2 to Type 2 EV charging cables.
The plugs have a thermoplastic shell and pins made of silver-plated copper alloy.
With the ergonomic designs, the plugs are comfortable to hold and easy to plug and unplug.
They are compatible with electronic locks on the EvSE or the Ev.
The vehicle will give an order to lock the plugs at both ends after it is ready for charging.
The current of the Type 2-to-Type 2 EV charging cable can be one phase or three phases.
Specification
Model | KD-IS3-AC1.0-16AS | KD-IS3-AC1.0-32AS |
Rated Current | 16A | 32A |
Cable Specification | 3*2.5mm²+1*0.5mm² | 3*6mm²+1*0.5mm² |
Parameters
Output Power | / |
Working Voltage | 250V / 480V |
Working Temperature | -30℃ ~+50℃ |
Cable Length | Customized |
Anti-lmpact | Yes |
Anti-uv | Yes |
Protection Level | IP54 |
Certification | CE, TUV, CB, UKCA |
Pins | Copper alloy |
Plug Shell Material | Thermoplastics |
Cable Jacket | TPE/TPU |
| Cable Color | Black, Orange, Green |
| Warranty | 24 months |
